Installing air conditioning condenser
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

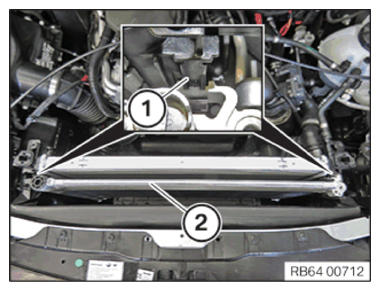

- Correctly position the air conditioning condenser (2) and slide in downwards.
- Detents (1) must lock correctly.
NOTE:
The operations shown only for one side must be carried out on both sides.

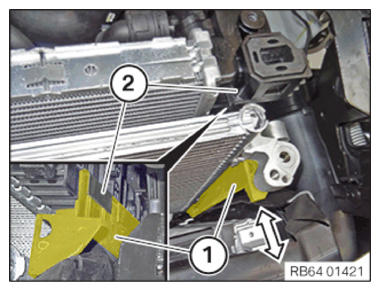

- Slide the covers (1) slightly towards the rear into the guides (2) on the left and right on the radiator.
- Replace the O-rings of the refrigerant lines (2).
Parts: O-rings
- Position refrigerant line (2) correctly.
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Refrigerant line to air conditioning condenser/connecting piece | ||
|---|---|---|
| M8 | tightening torque | 19 Nm |

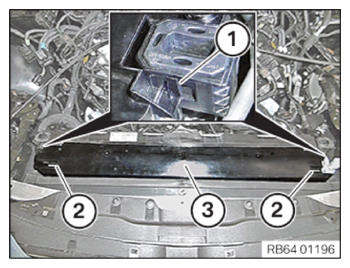

- Thread in the cover (3) at the guides (2) and position correctly.
- Engage the detents (1).
Follow-up work
- Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to TIGHTENING THE LEFT FRONT-END STRUT .
- Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to INSTALLING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Refer to EVACUATING AND CHARGING CONDITIONING .
