Installing the interior antenna on the rear center console
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

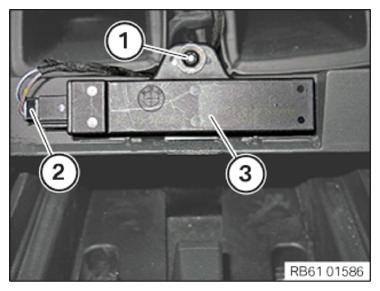

- Position interior antenna (3).
- Tighten down screw (1).
- Connect connector (2).
Follow-up work
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to INSTALLING THE REAR VENTILATION GRILLE .
- Refer to INSTALLING THE VENTILATION GRILLE IN THE REAR (AIR CONDITIONING SYSTEM WITH 4-ZONE CONTROL) .
- Refer to INSTALLING THE CONTROL PANEL OF THE REAR PASSENGER COMPARTMENT AIR CONDITIONING (INTEGRATED AUTOMATIC CLIMATE CONTROL WITH 4-ZONE CONTROL) .
