Installing the coolant ventilation line

• Thread in the coolant ventilation line and position.
• Connect and lock the coolant ventilation line on the clutch (2)  .
• The retaining clip must engage audibly.

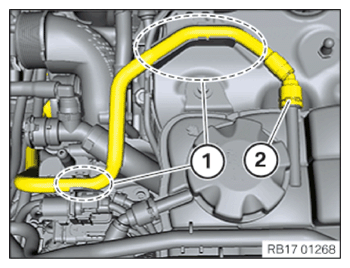

• Fasten the coolant ventilation line in the holders in the area (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

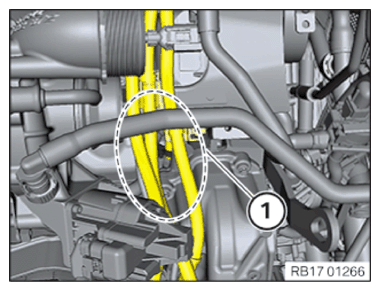

• Push aside the wiring harness in area (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

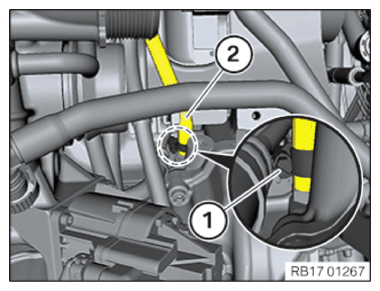

• Slide on the coolant ventilation line (2)  .
• Tighten the hose clamp (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

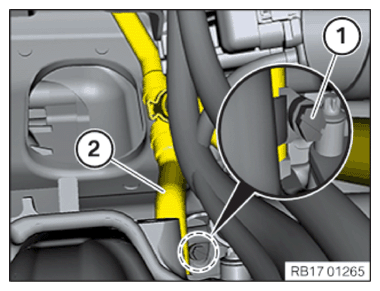

• Push aside the wiring harness in area (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

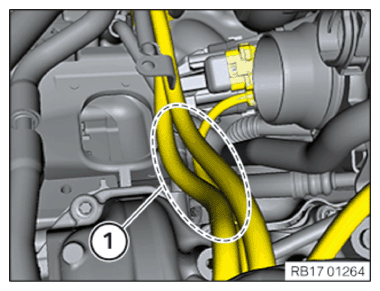

• Slide on the coolant ventilation line (2)  .
• Tighten the hose clamp (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING ALTERNATOR .
• Installing clean air pipe of cylinder bank 1.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the clean air pipe of cylinder bank 1 (2) in direction of arrow and slide it on

  The retaining clip (1) must engage audibly.

• Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
• Refer to INSTALLING THE RIGHT-HAND CHARGE AIR COOLER .
• Refer to INSTALLING THE LEFT-HAND CHARGE AIR COOLER .
• Refer to INSTALLING OIL FILLER NECK .
• Refer to CLOSING THE COOLANT PUMPS .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
• Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
• Refer to INSTALLING DRIVE BELT .
• Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to TIGHTENING THE LEFT FRONT-END STRUT .
• Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
• Installing the cover panel of the master DME control unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the cover of the master DME control unit (1)
  • Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
• Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
• Refer to CHECKING THE COOLANT LEVEL IN THE HIGH-TEMPERATURE CIRCUIT AND ADDING .
