Install brake booster
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

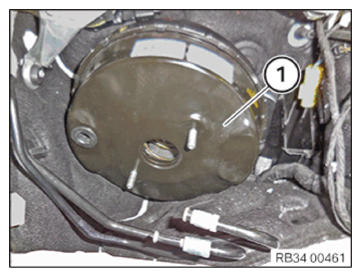

- Guide the brake booster (1) into the firewall.
- Install the nuts (1) and tighten.
- Replace nuts.
Parts: Nuts
TIGHTENING TORQUES SPECIFICATION
| Brake booster to pedal assembly console | ||
| Replace nuts. M8 Retighten 1x on brake booster after 10 min. |
tightening torque | 22 Nm |
- Lock brake pedal (1) in place in the arrow direction with the brake booster.
Ensure that the brake pedal is completely locked with the brake booster!

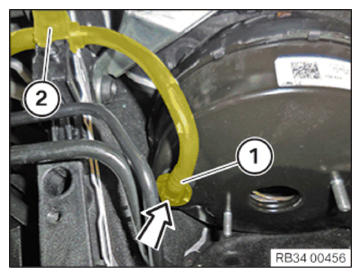

- Install the check valve (1) in the brake booster in the arrow direction.
- Hook the vacuum line into the holder (2).
- Hook the brake lines (3) into the guides.
- Install the cover (2).
- Insert screws (1) and tighten.
- Install air duct (1).
Follow-up work
- Refer to INSTALLING BRAKE LIGHT SWITCH .
- Refer to PREPARING FOR THE INSTALLATION OF THE TANDEM BRAKE MASTER CYLINDER .
- Refer to INSTALLING THE TANDEM BRAKE MASTER CYLINDER .
- Refer to INSTALLING THE EXPANSION TANK .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING THE WIPER CONSOLE .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Installing the rear right engine compartment cover.
Remove the battery cover .
NOTE: The following step(s) must be performed if the listed component(s) is/are installed.- Remove the special tool 2 452 007 from the battery.
- Install the cover (2).
- Lock the lock (1).
- Refer to CONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
- Refer to FLUSHING AND VENTING THE REAR AXLE BRAKE CIRCUIT .
- Refer to FLUSHING AND BLEEDING THE FRONT AXLE BRAKE CIRCUIT (BRAKE HIGH) .
- Refer to DISCONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
