Install front brake hose
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Attach brake hose to the holder (1).
Observe installation sequence:
- Secure brake hose in the holders.
- Move wheels into straight-ahead position.
- Screw brake hose onto the connection between pipe and brake hose.
- Screw brake hose on brake caliper.
- Position and tighten the union screw (2). If necessary, use the square end (3) for counter support.
TIGHTENING TORQUES SPECIFICATION
| Brake pipe screw connection/Union screws | ||
| tightening torque | 17 Nm | |

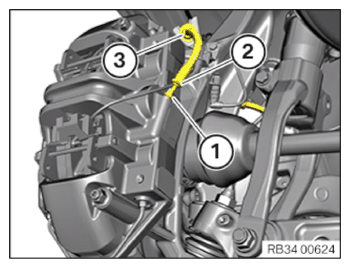

- Position and tighten the brake hose (1) on the brake caliper and use the knurling (2) for counter support as needed.
TIGHTENING TORQUES SPECIFICATION
| Brake hose to brake caliper, front | ||
| tightening torque | 17 Nm | |
- Attach brake hose to the holder (3).
Follow-up work
- Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
- Refer to REMOVING THE BRAKE PEDAL TENSIONER .
- Refer to CONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
- Refer to FLUSHING AND BLEEDING THE FRONT AXLE BRAKE CIRCUIT (BRAKE HIGH) .
- Refer to DISCONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
