Installing the wiring harness section for sensor system 5-8

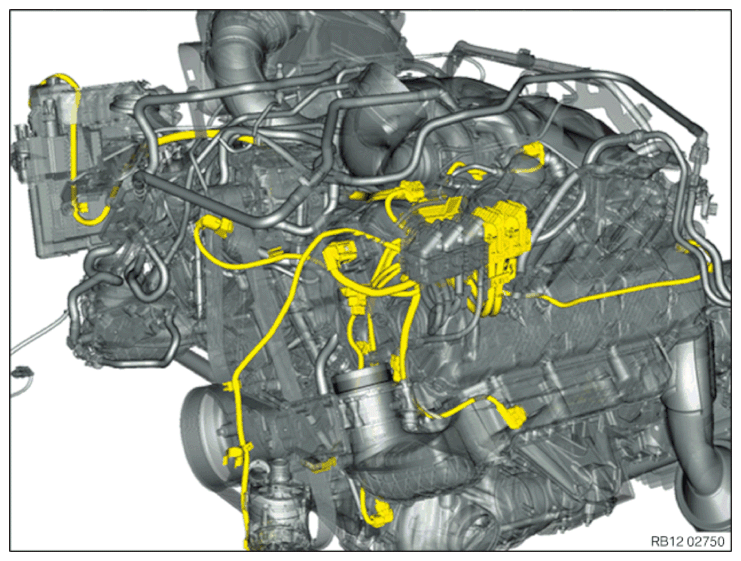

Wiring harness section for sensor system of cylinders 5 to -8

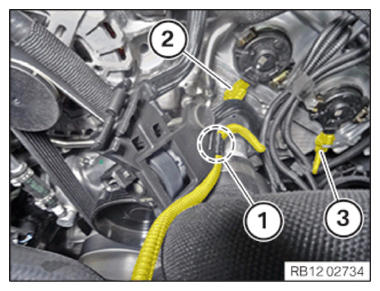

- Feed in and position the wiring harness section of sensor system 5-8.

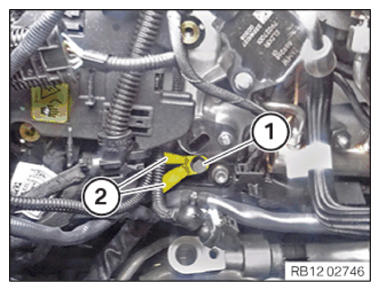

- Position the grounding point (2) .
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Ground cable splitter to the cylinder head cover | ||
|---|---|---|
| M6x14 screw | tightening torque | 10 Nm |

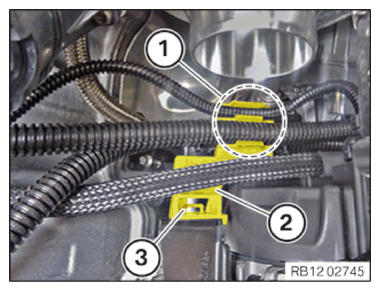

- Position the wiring harness section of sensor system 5-8 with the holder (2) in a downwards direction in the holder.
- Lock the holder (2) at the lug (3) .
- Clip in the wiring harness in the area (1)
.

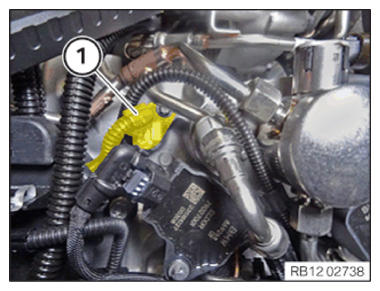

- Connect connectors (1)
and lock.
- Connect connectors (1) and lock.

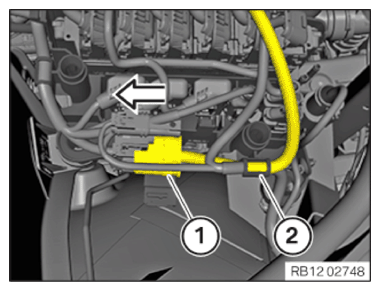

- Clip in the wiring harness section of the sensor system 5-8 on the holder (2) .

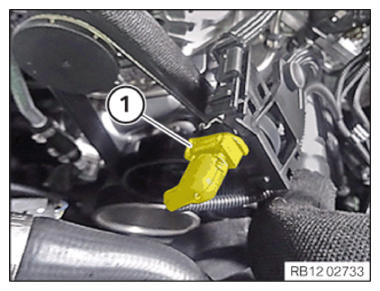

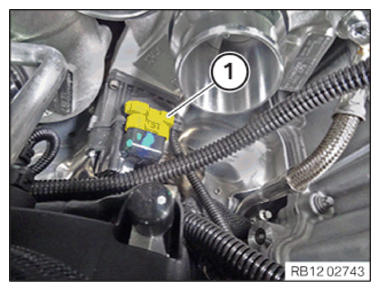

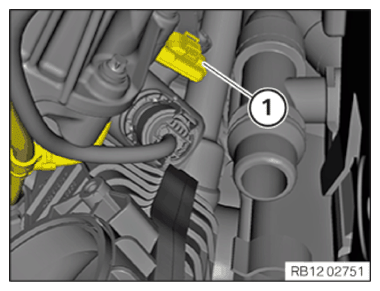

- Clip in the connector (1) in arrow direction.
Installing cover for the right DME control unit

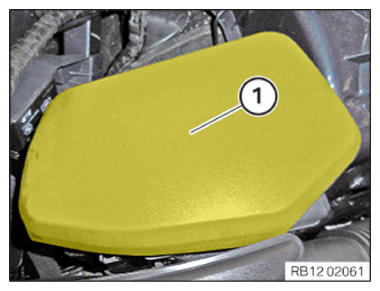

- Guide in and install cover (1) .

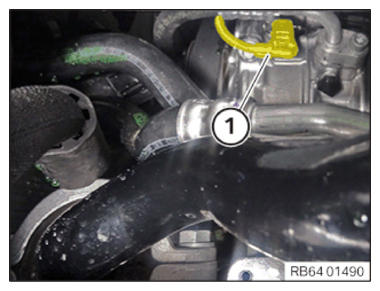

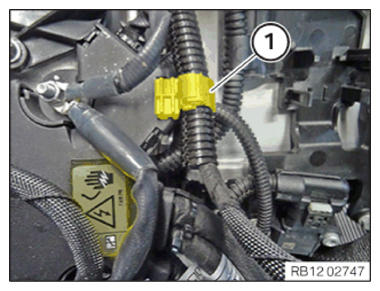

- Clip in the wiring harness mounting (1)
.
- Positioning the wiring harness section for sensor system 5-8

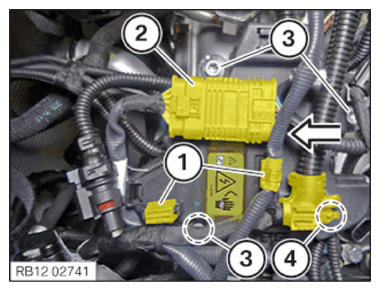

- Tighten the screws (3) .
TIGHTENING TORQUE SPECIFICATIONS
| Wiring harness section 5-8 to the cylinder head cover | ||
|---|---|---|
| M6x16 screw | tightening torque | 8 Nm |
- Unclip the wiring harness integrated power supply module (PDM) in the area (4)
at the lug in arrow direction.

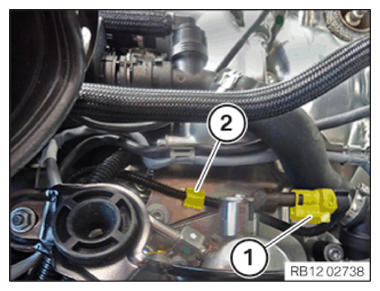

- Connect connectors (2) and lock.
- Clip in the connector (2) in arrow direction at the wiring harness section of sensor system 5-8.
- Clip in wiring harness mountings (1) .
- Clip in the wiring harness section of the sensor system 5-8 on the holder in the area (2) .
- Connect connectors (1)
and lock.
- Connect connectors (1)
and lock.
- Connect connectors (1)
and lock.

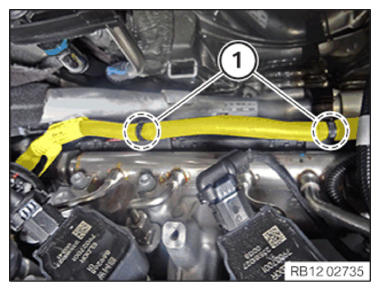

- Clip in the wiring harness mountings in the areas (1)
.
- Clip in the wiring harness mounting (1) .
- Connect connectors (2)
and lock.
- Connect connectors (2) and lock.
- Clip in the wiring harness mounting in the area (1)
.
- Connect connectors (1) and lock.

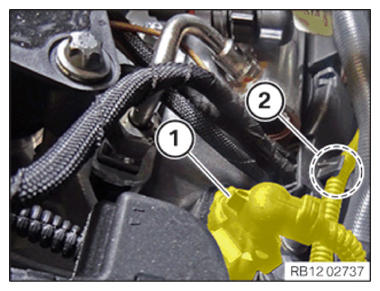

- Clip in the wiring harness mounting (2)
.
- Connect connectors (1) and lock.
- Clip in the wiring harness mounting (2)
.
- Connect connectors (1)
and lock.

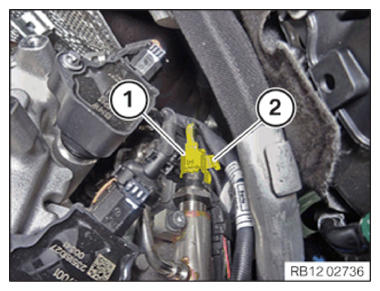

- Connect connectors (2) and (3) and lock.
- Clip in the wiring harness mounting (1)
.
- Connect connectors (1)
and lock.

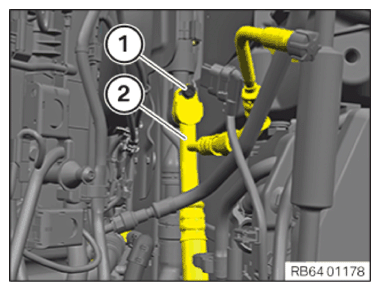

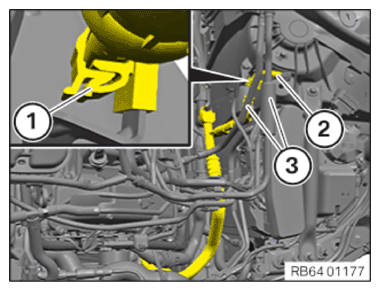

- Position the intake pipe (2) correctly.
- Tighten screw (1) of the intake pipe (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Refrigerant line to connecting piece | ||
|---|---|---|
| M8 | Tightening torque | 19 Nm |
- Insert intake pipe (2) below the lines (3) and insert in the holder (1) .
- Engage holder (1) .
Connecting the connector of the DME control unit for cylinders 5 to 8
NOTE:
TECHNICAL INFORMATION
If the DDE control unit or an injector has been replaced, it will also be necessary to carry out injection quantity compensation. The adjustment value (7-character letter code/number code) for the injection quantity compensation is engraved on each injector.
If the DDE control unit or an injector has been replaced, it will also be necessary to carry out injection quantity compensation. The adjustment value (7-character letter code/number code) for the injection quantity compensation is engraved on each injector.
NOTE:
TECHNICAL INFORMATION
If control units are disconnected, fault memory entries and functional limitations may occur.
The fault memory entries must be read out and, if necessary, deleted.
If control units are disconnected, fault memory entries and functional limitations may occur.
The fault memory entries must be read out and, if necessary, deleted.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Feed the cover (1)
in the arrow direction into the holder (2)
and install it.
- Lock the cover (1) in the arrow direction.
Follow-up work
- Refer to INSTALLING REINFORCEMENT STRUT .
- Refer to SECURING THE TRANSMISSION OIL COOLING BRACKET .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to FOR REUSING: CHECKING THE GEARING OF THE OUTPUT SHAFT AND REPLACING THE SNAP RING .
- Refer to REPLACING THE LEFT RADIAL SHAFT SEAL .
- Refer to INSTALLING LEFT OUTPUT SHAFT .
- Refer to CHECK/ADD FRONT AXLE TRANSMISSION OIL .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING SPRING SUSPENSION STRUT .
- Refer to FASTENING THE WISHBONE TO THE TOP OF THE SWIVEL BEARING .
- Refer to FASTENING THE BRAKE HOSE AND THE CABLE .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
- Refer to ATTACHING THE FRONT LEFT WHEEL .
- Refer to INSTALLING THE LEFT THROTTLE BODY .
- Refer to INSTALLING THE LEFT-HAND CHARGE AIR COOLER .
- Refer to CLOSING THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to CLOSING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE LOWER LEFT FRONT WHEEL ARCH COVER .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING OIL FILLER NECK .
- Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 1 .
- Refer to FASTENING THE ENGINE VENTILATION LINE OF CYLINDER BANK 1 .
- Refer to INSTALLING THE RIGHT UNFILTERED-AIR DUCT .
- Refer to INSTALL RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT and INSTALL THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to EVACUATE AND CHARGE CONDITIONING .
- Refer to INSTALLING THE WIRING HARNESS SECTION FOR SENSOR SYSTEM 5-8 .
- Refer to RECONNECTING ALL BATTERY GROUND LEADS .
