Installing The Engine Compartment Lid Hinge, Left

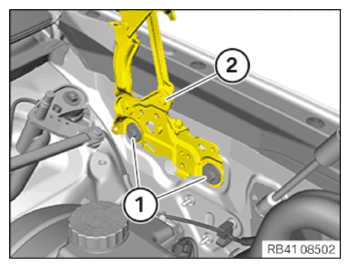

• Position hood hinge (2).
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Engine compartment lid hinge to body
  screw
  	Tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

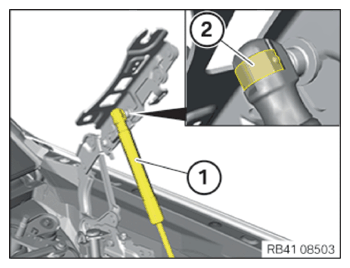

• Position and press in the gas spring (1) on the ball head.

  Ensure the clamp (2) locks correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LEFT WATER DRAIN CHANNEL .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALL LEFT AND RIGHT WIPER ARM .
• Refer to INSTALL THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALL HOOD .
• Refer to CHECK THE GAP DIMENSION OF THE HOOD .
