Installing the front brake pad wear sensor

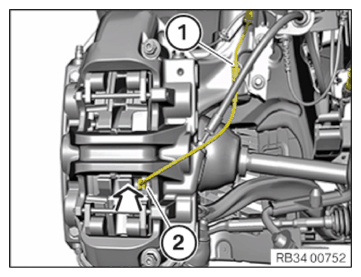

• Hook the cable of the brake pad wear sensor in the holder
• Install the brake pad wear sensor (2) in the direction of arrow in the brake pad and ensure its correct fit

  Courtesy of BMW OF NORTH AMERICA, INC.

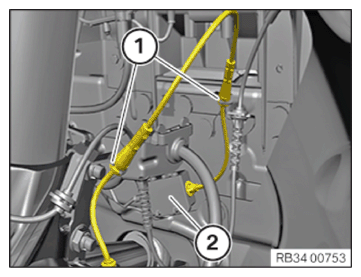

• Attach cable of brake pad wear sensor in holders (1)
• Connect connectors and lock
• Close sealing cap (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ATTACHING THE FRONT LEFT WHEEL .
