Install brake guard plate, front

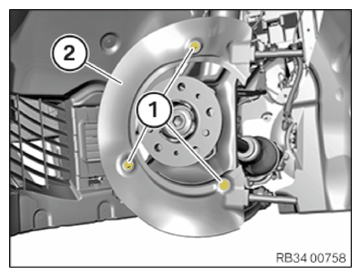

- Position the brake guard plate (2)
- Replace screws (1)
Parts: Screws
- Insert screws (1) and tighten
TIGHTENING TORQUE SPECIFICATION
| Brake guard plate at front swivel bearing | ||
| M6x12 Replace screw |
tightening torque | 8 Nm |
Follow-up work
- Refer to INSTALLING FRONT BRAKE DISCS (CARBON CERAMIC BRAKE) .
- Refer to CLEANING THE BRAKE CALIPER .
- Refer to INSTALLING FRONT BRAKE PADS .
- Refer to PLACING THE BRAKE PADS ON THE BRAKE DISK/PUTTING THEM INTO OPERATION .
- Refer to INSTALLING THE FRONT BRAKE PAD WEAR SENSOR .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to COMMISSIONING OR BEDDING IN OF NEW BRAKE PADS AND BRAKE DISCS (CARBON CERAMIC BRAKE) .
