Installing the pedestrian protection sensor

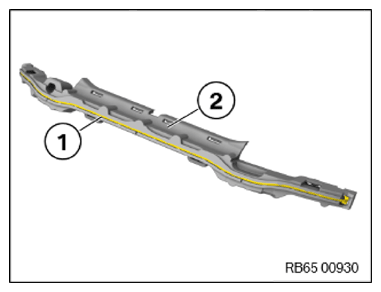

• Check impact absorber (2)  for damage and replace if necessary
• Carefully insert the pedestrian protection sensor (1)  into the impact absorber (2)

  Courtesy of BMW OF NORTH AMERICA, INC.

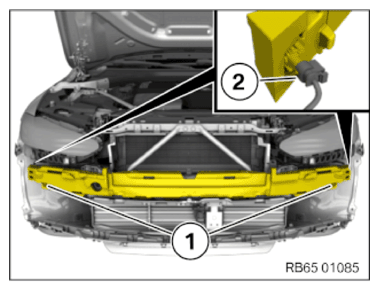

• Connect connectors (2)  and lock
• Hook the impact absorber into place below and press upwards
• Secure expanding rivet (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to PARTIALLY INSTALLING THE FRONT LEFT AND RIGHT WHEEL ARCH TRIM PANELS .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to RECONNECTING ALL BATTERY GROUND LEADS .
