Installing fuel delivery line

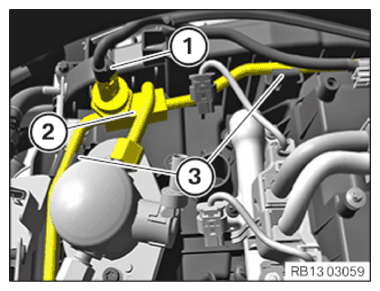

• Guide and position fuel supply line (2) into clamps (3)
• Connect connectors (1) and lock

  The connector (1) must engage audibly

  Courtesy of BMW OF NORTH AMERICA, INC.

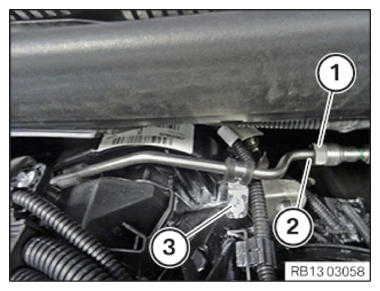

• Slide and lock the fuel supply line in snap fastener (2)

  The fuel supply line must be audibly engage in the snap fastener (2)

• Tighten down screw (3)

Courtesy of BMW OF NORTH AMERICA, INC.

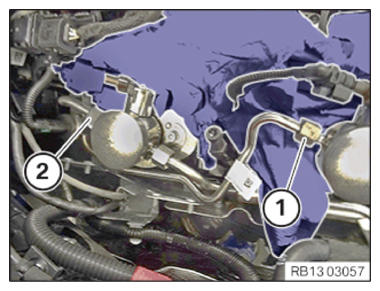

• Turn union nut (2) until hand-tight
• Turn union nut (1) until hand-tight
• Tighten the union nut (2)

• Tighten the union nut (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING ALL IGNITION COILS .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE STRUT BRACE .
• Refer to RECONNECTING ALL BATTERY GROUND LEADS .
