Installing all ignition coils

NOTE: The description is provided only at one component. The procedure is the same for all other components

Install ignition coil

TIGHTENING TORQUE SPECIFICATIONS

Ignition coil
screw	Tightening torque	8 Nm

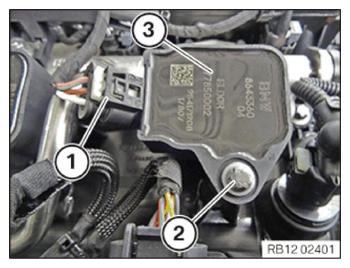

The connector (1) must engage audibly

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

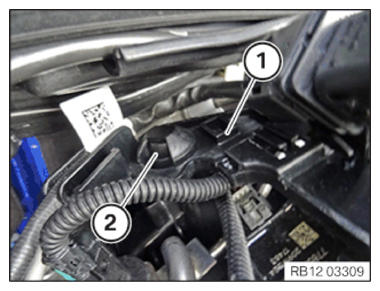

Attach holder (1) to ball pivot (2)

Courtesy of BMW OF NORTH AMERICA, INC.

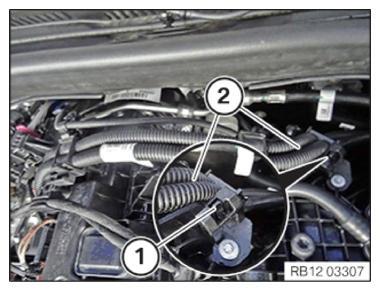

Guide in the wiring harness section (1) and install

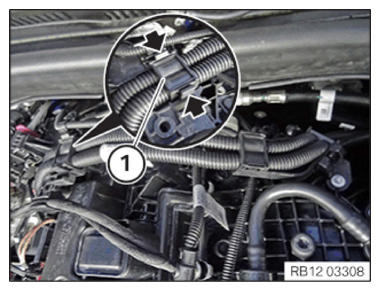

The locks (arrows) must engage audibly

Courtesy of BMW OF NORTH AMERICA, INC.

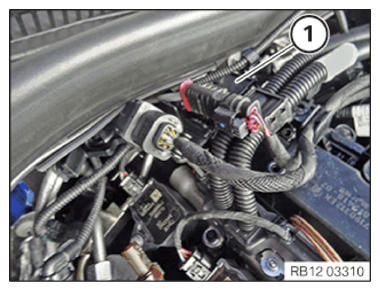

Insert and install the wiring harness section (2)

The lock (1) must engage audibly

Courtesy of BMW OF NORTH AMERICA, INC.

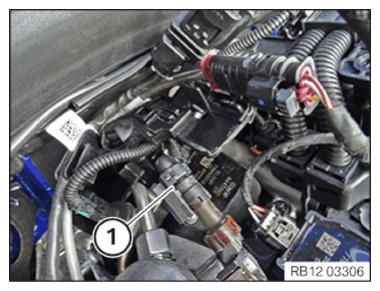

Connect connectors (1) and lock
The connector (1) must engage audibly

Courtesy of BMW OF NORTH AMERICA, INC.

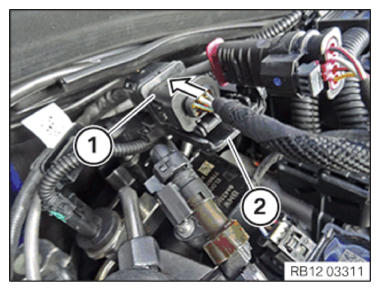

Guide in and install plug connection (1) on holder (2) in the arrow direction

Courtesy of BMW OF NORTH AMERICA, INC.

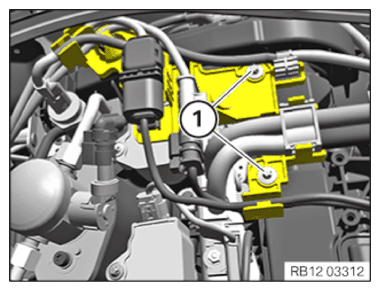

Tighten the screws (1)

TIGHTENING TORQUE SPECIFICATIONS

Oxygen sensor bracket to cylinder head cover
Self-tapping screw M6	Tightening torque	5.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
