Installing the complete cowl cover

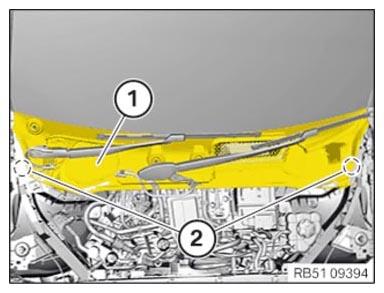

- Install the cowl cover (1) together with the wiper arm.
- Engage the cowl cover (1) at the detents (2) .
- Engage the cowl cover (1)
, beginning on the side, in the detent on the windshield.
- Attach the wiper arms (3) and position correctly.
- Correctly position the wiper arm (2) in relation to the window edge (1) .
TECHNICAL DATA SPECIFICATION
| Distance from window pane edge to wiper blade | ||
|---|---|---|
| Wiper arm right (A) | 79.5 mm | |
| Wiper arm left (B) | 112.4 mm | |

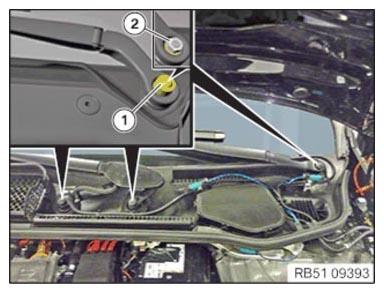

- Tighten nuts (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Windshield wiper arm | ||
|---|---|---|
| Combination hexagon nut | tightening torque | 35 Nm |
- Mount the cover caps (1)
.
- Connect washer fluid hoses and engage the snap fasteners (1) .
- Connect connectors (2) and lock.
Follow-up work
- Refer to CLOSING THE ENGINE COMPARTMENT LID .
