Remove the lower part of the rear spoiler
Preliminary work
- Refer to REMOVING REAR DECK .
- Refer to REMOVING THE TRIM FOR THE TOP REAR WINDOW FRAME .
- Refer to REMOVING THE TRIM ON THE REAR WINDOW FRAME ON THE LEFT AND RIGHT SIDE .
- Refer to REMOVING REAR SPOILER .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

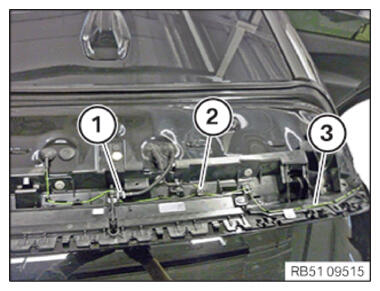

- Unlock and disconnect washer fluid hose (1) .
- Unlock plug connection (2) and disconnect.
- Feed out the antenna (3)
.

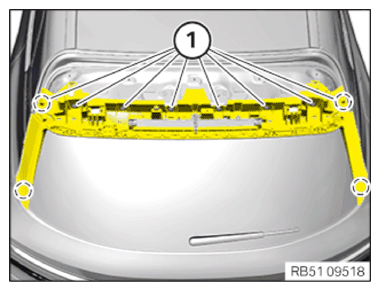

- Loosen screws (1) .
- Slide and remove the lower section (1) of the rear spoiler to the rear from the clips (2) .
