Installing luggage compartment wheel arch trim panel on right

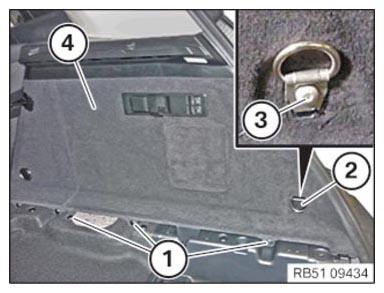

- Feed in the luggage compartment wheel arch trim panel (4) and position it correctly.
- Install the lashing eye and tighten the screw (3) .
TIGHTENING TORQUE SPECIFICATIONS
| Lashing point in trunk | ||
|---|---|---|
| M8 screw | Tightening torque | 19 Nm |
- Mount the cover (2) .
- Mount the expanding rivets (1) .
Follow-up work
- Refer to INSTALLING THE SWITCH FOR REMOTE BACKREST UNLOCKING .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALLING THE FRONT STORAGE SHELF .
