Install the switch for remote backrest unlocking

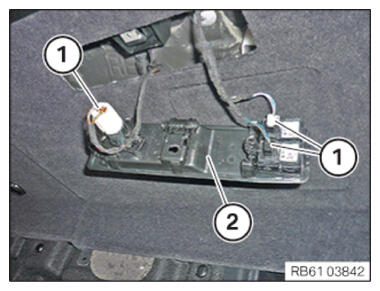

• Connect all connectors (1)  with the remote backrest unlocking (2)  and lock it in place.

  Courtesy of BMW OF NORTH AMERICA, INC.

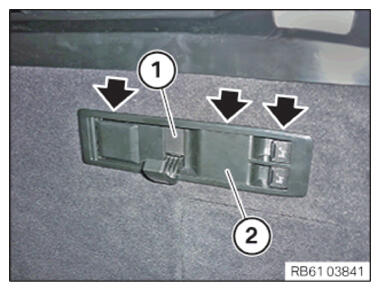

• Position the switch (2)  for the remote backrest unlocking and clip it in (arrows).
• Tighten the corresponding screw and fasten the lid (1)  .

TIGHTENING TORQUES SPECIFICATIONS

Remote backrest unlocking
Screw	Tightening torque	2.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
