Installing the center stack trim

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

Protect working area.
Handle tools and components carefully.

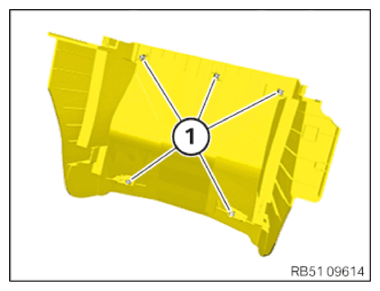

Check the clamps (1) and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

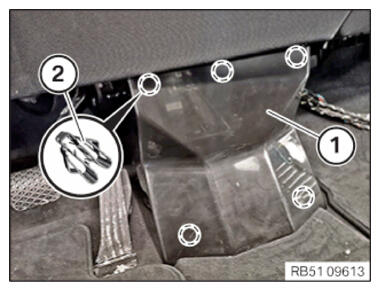

Carefully insert the center stack trim (1) and position it correctly.
Engage the center stack trim (1) at the clamps (2) .

G16851474

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE BOTTOM FRONT CENTER CONSOLE .
Refer to INSTALLING THE STORAGE TRAY FOR THE NEAR FIELD COMMUNICATION .
