Removing module bracket

Preliminary work

• Refer to REMOVING THE TRIM FOR THE EMERGENCY OPERATION .
• Refer to REMOVING THE DECORATIVE STRIP FROM THE REAR DOOR TRIM PANEL .
• Refer to REMOVING REAR DOOR TRIM .

• Loosen screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock plug connections (1)  and disconnect.
• Unclip wiring harness (2)  on the module bracket.
• Release rubber grommet (3)  of the Bowden cable inwards from the module bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

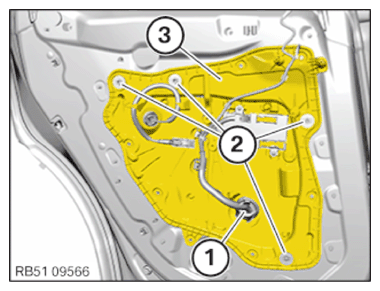

• Release rubber grommet (1)  of the wiring harness inwards from the module bracket.
• Unlock bayonet fittings (2)  by turning them 90°.
• Lift module bracket (3)  slightly and remove it from the door.

Courtesy of BMW OF NORTH AMERICA, INC.
