Installing washer fluid filler pipe

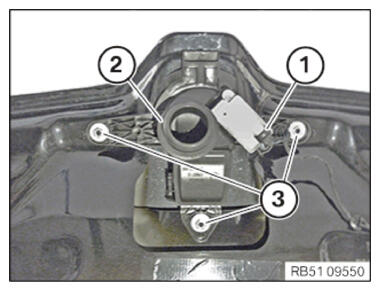

- Install washer fluid filler pipe (2) .
- Tighten nuts (3) .
TIGHTENING TORQUE SPECIFICATIONS
| Washer fluid filler pipe on hood | ||
|---|---|---|
| hexagon nut M6 | Tightening torque | 8 Nm |
- Secure the cable to washer fluid filler pipe (2) .
- Connect connectors (1) and lock.
Follow-up work
- Refer to CLOSING THE ENGINE COMPARTMENT LID .
