Remove the side bumper guide
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING REAR UNDERBODY SHIELD .
- Refer to REMOVING THE CENTER DIFFUSER .
- Refer to REMOVING THE LEFT AND RIGHT DIFFUSERS .
- Refer to REMOVING THE REAR BUMPER PANEL .

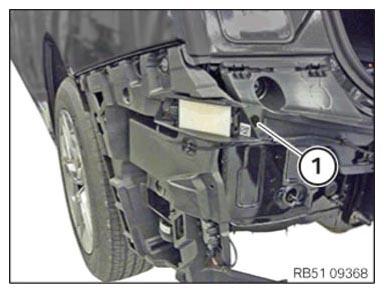

- Loosen screw (1)
.

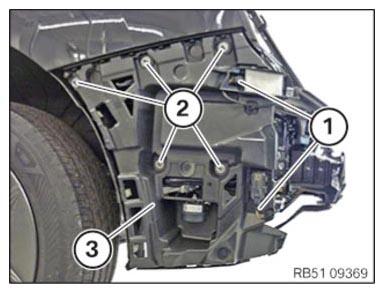

- Unlock plug connections (1) and disconnect.
- Unscrew the nuts (2) and remove the side bumper guide (3) .
