Installing gap seal on the A-pillar

• Clean the bonding surface on the door.

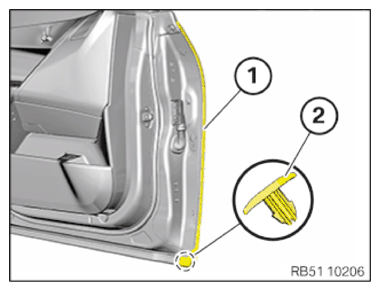

• Replace gap seal (1)  .

  Parts:  Gap seal

• Attach gap seal (1)  to clip (2)  .
• Detach the liner from the gap seal.
• Position gap seal (1)  and press it on the adhesive strip along the entire length.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LEFT FRONT DOOR .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
