Removing the upper rear cross connection

Preliminary work

• Refer to MOVING THE HOOD TO THE SERVICE POSITION .
• Refer to REMOVING THE UPPER SECTION OF THE CROSS CONNECTION .

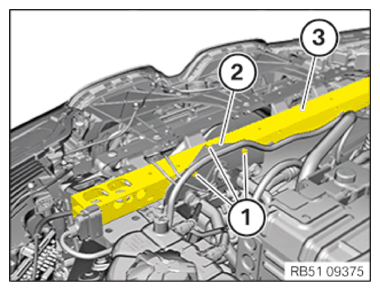

• Loosen screws (1)  .
• Remove the holder (2)  from the cross connection (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

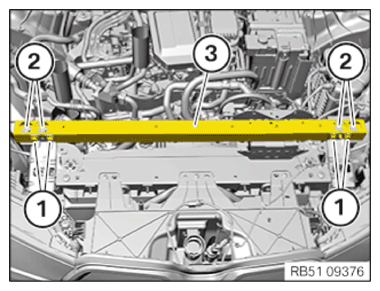

• Release screws (1)  and (2)  .
• Remove the cross connection (3)  .

Courtesy of BMW OF NORTH AMERICA, INC.
