Installing the tailgate trim panel

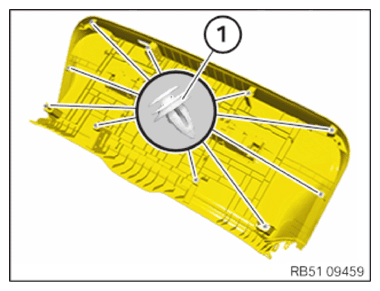

• Check the clips (1)  for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

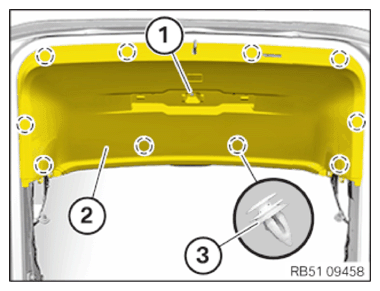

• Install tailgate trim panel (2)  and clip it into clips (3)  .
• Tighten down screw (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

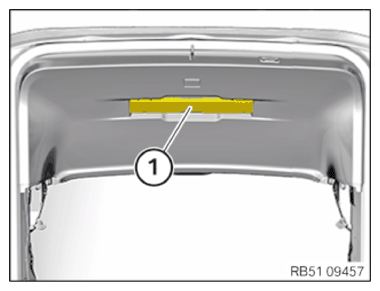

• Install warning triangle (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SWITCH FOR THE AUTOMATIC TAILGATE OPERATION .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to INSTALLING THE TRIM ON THE SIDE REAR WINDOW FRAME ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
• Refer to INSTALLING THE REAR STORAGE SHELF .
