Installing the cup holder

Installing the decorative trim on the center console

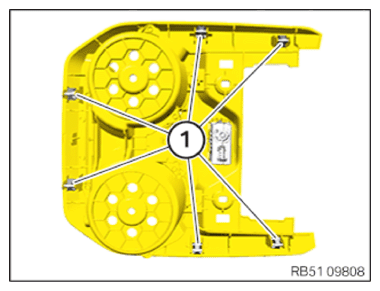

• Check the clamps (1)  and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

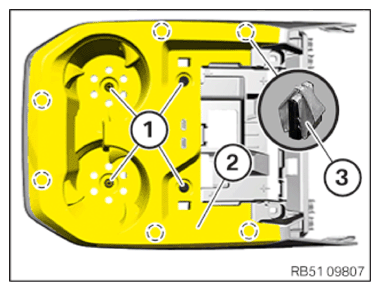

• Correctly position the decorative trim (2)  and engage at clamps (3)  .
• Tighten the screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

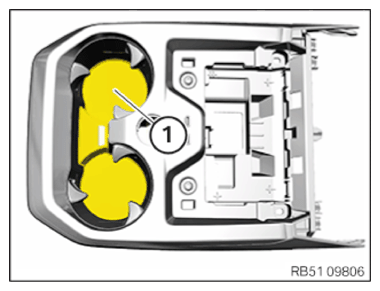

• Install the insert (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING 12 V SOCKET (FRONT BOTTOM CENTER CONSOLE) .
• Refer to INSTALLING THE BOTTOM FRONT CENTER CONSOLE .
• Refer to INSTALLING THE STORAGE TRAY FOR THE NEAR FIELD COMMUNICATION .
