Installing 12 V socket (front bottom center console)

• Correctly position the ring light (1)  in the front bottom center console (2)  and install it.

  Courtesy of BMW OF NORTH AMERICA, INC.

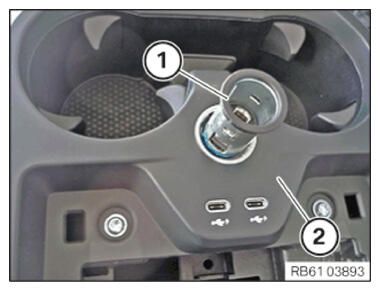

• Correctly position the 12 V socket (1)  and install it in the front bottom center console (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE BOTTOM FRONT CENTER CONSOLE .
• Refer to INSTALLING THE STORAGE TRAY FOR THE NEAR FIELD COMMUNICATION .
