Installing transmission wiring harness

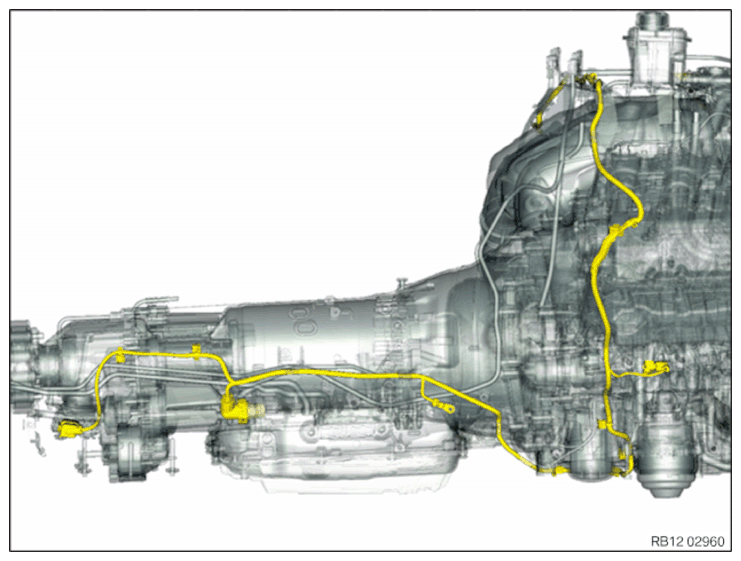

Transmission wiring harness

Courtesy of BMW OF NORTH AMERICA, INC.

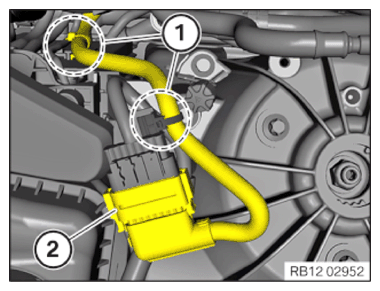

• Guide in and position transmission wiring harness.
• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

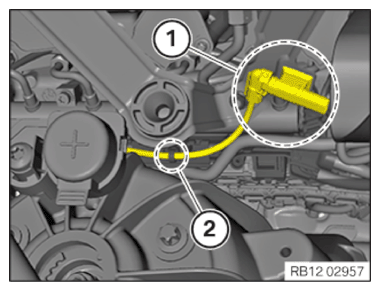

• Position the connector (2)  .
• Turn the connector with bayonet closure (2)  clockwise and lock it.
• Clip in the detents of transmission wiring harness (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the grounding point.
• Tighten down screw (2)  .
  TIGHTENING TORQUE SPECIFICATION



  Ground connection on transmission
  M6x12 screw	Tightening torque	10 Nm

• Engage the detents of the transmission wiring harness (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Engage the detents of the transmission wiring harness (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the cable ties (1)  .

  Parts:  Cable tie

• Tighten the cable tie (1)  and cut off protruding end.
• Connect plug connection (3)  and lock.
• Engage the detents of the transmission wiring harness (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing transmission cross member.

• Install the transmission cross member (2)  .
• Replace screws (1)  .

  Parts:  Screws

• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Transmission cross member to body
  M8	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the line.
• Fasten the line with clamps (1)  at the transmission cross member (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the luggage strap (1)  from the transmission.
• Remove the special tools 2 219 012 and 0 495 498 (23 4 050) .

Courtesy of BMW OF NORTH AMERICA, INC.

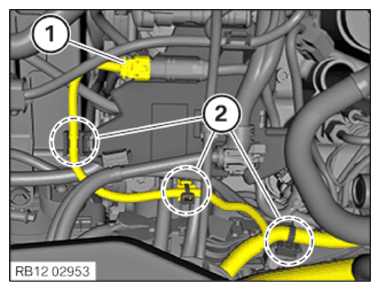

• Clip in the transmission wiring harness in the area (1)  on the wiring harness for the ignition system of cylinder bank 1.
• Secure the transmission wiring harness in the clamps (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• If installed:

  Clip in the connector (1)  in the holder for the intake silencer.

• If installed:

  Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

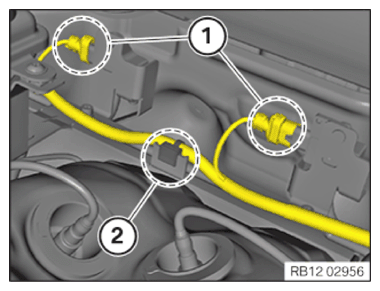

• Secure the wiring harness mounting (2)  .
• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

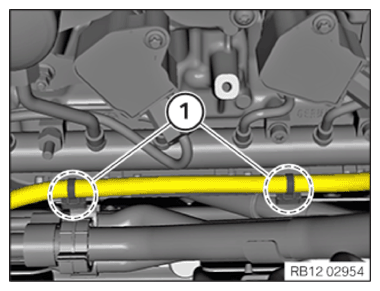

• Attach the transmission wiring harness in the clamps (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

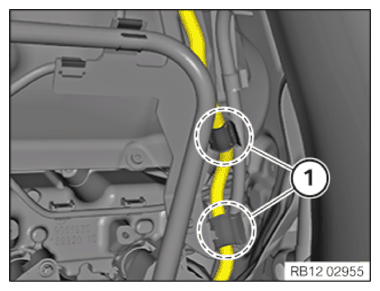

• Clip in wiring harness mountings (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

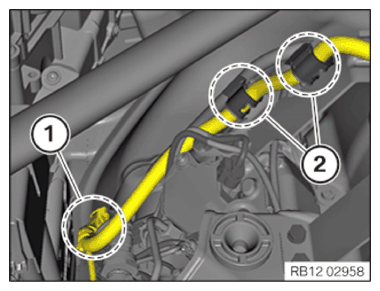

• Clip in wiring harness mountings (2)  .
• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in wiring harness mountings (1)  .
• Connect connectors (2)  and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING TRANSMISSION CROSS MEMBER .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE AIR DUCT .
• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING LEFT STRUT BRACE .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
