Installing transmission cross member

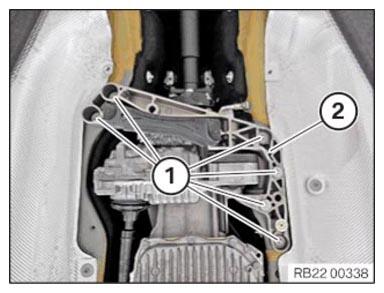

- Install the transmission cross member (2).
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION
Transmission cross member to body M8 Tightening torque 19 Nm - Install the line.

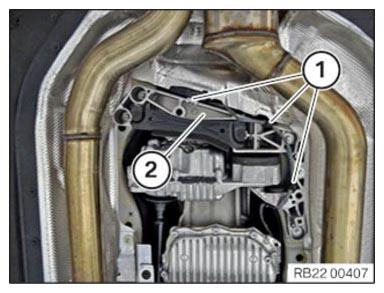

- Fasten the line with clamps (1) at the transmission cross member (2).

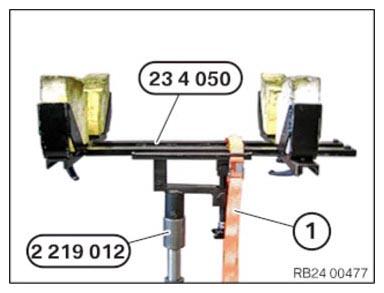

- Release the luggage strap (1) from the transmission.
- Remove the special tools 2 219 012
and 0 495 498 (23 4 050)
.
