Installing starter motor
- Guide in the starter motor.
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATION
Transmission to engine M8 Tightening torque 19 Nm M10 Tightening torque 38 Nm - Fix wiring harness mountings (2) and (3) .
- Connect the connector (4) to the solenoid valve and lock.
- Connect the connector (1)
to the oil pressure sensor and lock.
- Position holder (2) .
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATION

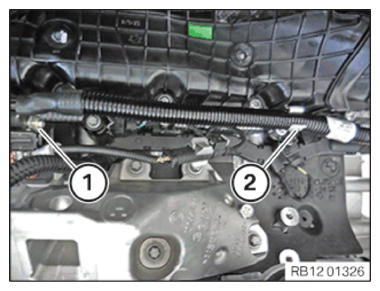

Holder to starter motor M6x14 screw Tightening torque 10 Nm - Connect positive battery cable to the starter motor.
- Secure positive battery cable at the clamp (2) .
- Tighten nut (1)
.TIGHTENING TORQUE SPECIFICATION
Battery positive lead to starter M8 Tightening torque 15 Nm - Connect the connector (1) to the solenoid switch and lock.
Follow-up work
- Refer to INSTALLING THE RETAINING PLATE ON THE RIGHT .
- Refer to SECURING THE AIR DUCT .
- Refer to INSTALLING THE RIGHT ENGINE MOUNTING BRACKET .
- Refer to INSTALLING FRONT AXLE .
- Refer to TIGHTENING THE BOLTS ON THE FRONT AXLE SUPPORT .
- Refer to SECURING THE SWIVEL BEARING, LEFT AND RIGHT .
- Refer to REMOVING THE MOBILE LIFTING TABLE .
- Refer to FASTENING COOLANT HOSE TO THE FRONT SUBFRAME .
- Refer to SECURING THE HOLDER FOR TRANSMISSION OIL COOLING .
- Refer to REPLACING THE RADIAL SHAFT SEALS .
- Refer to INSTALLING THE OUTPUT SHAFT ON LEFT AND RIGHT .
- Refer to DRAIN/TOPPING UP THE FRONT AXLE TRANSMISSION OIL .
- Refer to INSTALLING THE LEFT AND RIGHT SPRING STRUT HOLDER .
- Refer to SECURING THE WISHBONE ON THE TOP LEFT AND RIGHT ON THE SWIVEL BEARING .
- Refer to SECURING THE FRONT LEFT AND RIGHT BRAKE CALIPER .
- Refer to FASTENING THE RIGHT AND LEFT OUTPUT SHAFTS ONTO THE WHEEL BEARING .
- Refer to CONNECTING THE CONNECTORS ON LEFT AND RIGHT .
- Refer to CONNECTING THE CONNECTOR TO THE LEFT AND RIGHT VERTICAL ACCELERATION SENSOR .
- Refer to SECURING THE UNIVERSAL JOINT ON THE STEERING GEAR .
- Refer to ATTACHING THE WIRING HARNESS TO THE ACTIVE ANTI-ROLL BAR (ADDITIONAL WORK, FLAT RATE UNIT NUMBER: 37 11 999) .
- Refer to FASTENING THE WIRING HARNESS TO THE EPS .
- Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to INSTALLING THE LEFT-HAND AND RIGHT-HAND CRASH LEVER .
- Refer to INSTALLING REINFORCEMENT STRUT .
- Refer to REMOVING THE ENGINE FROM THE INSTALLATION POSITION .
- Refer to INSTALLING THE CROSSING OF THE TRANSMISSION WIRING HARNESS .
- Refer to ATTACHING THE SPRING STRUT (AIR SUSPENSION) RIGHT FRONT .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to INSTALLING THE STRUT BRACE ON THE LEFT AND RIGHT .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT, BOTTOM LEFT AND RIGHT .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
- Refer to PLACING THE BRAKE PADS ON THE BRAKE DISK/PUTTING THEM INTO OPERATION .
