Installing the retaining plate on the right
Installing the retaining plate on the right

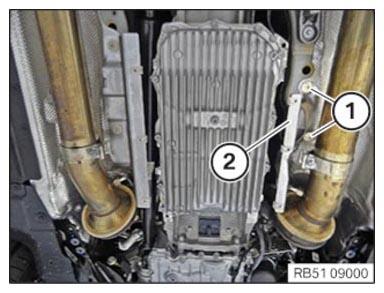

Position the retaining plate on the right (2).
Replace nuts (1).
Parts:
Nuts
Tighten nuts (1).
TIGHTENING TORQUE SPECIFICATION
Retaining plates for underbody cover
Sheet metal nut/plastic nut Replace nuts.
Tightening torque
3 Nm
