Installing air conditioning condenser

Insert the air conditioning condenser (3) upwards and position it correctly.
Push the air conditioning condenser (3) to the rear and engage the detents (2).
Push the low-temperature coolant radiator (1) backwards and position it correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace O-rings.
Parts: O-rings
Install the refrigerant lines (2).

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Refrigerant lines to air conditioning condenser/connecting piece
M6	Tightening torque	13 Nm

G14241056

Courtesy of BMW OF NORTH AMERICA, INC.

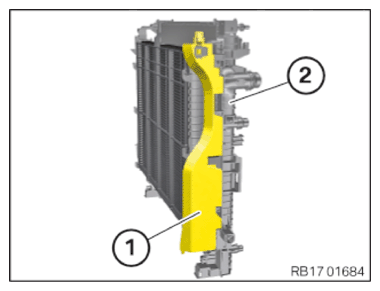

NOTE: For a better overview the removed condition is shown here.

Check that the left cover (1) is seated correctly on the cooling module (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Lock the lock (1) on the left on the radiator of the low-temperature coolant circuit.

Courtesy of BMW OF NORTH AMERICA, INC.
Lock the lock (1) on the right on the radiator of the low-temperature coolant circuit.

Courtesy of BMW OF NORTH AMERICA, INC.
Install the upper cover panel (2) at the cooling module.
Lock the locks (1).

G14359187

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE AIR DUCT FOR THE RADIATOR .
Refer to INSTALLING THE FRONT TOP CROSS CONNECTION .
Refer to INSTALLING REINFORCEMENT STRUT .
Refer to INSERT TOP AUTOMATIC AIR FLAP CONTROL .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
Refer to INSTALLING UPPER CROSS CONNECTION .
Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT , and INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
Refer to INSTALLING THE FRONT HOOD SEAL .
Refer to INSTALLING BUMPER COVER, FRONT .
Refer to PARTIALLY INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
Refer to PARTIALLY INSTALLING THE LEFT FRONT AND RIGHT WHEEL ARCH TRIM .
Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
Refer to EVACUATE AND CHARGE CONDITIONING .
