Installing the system battery

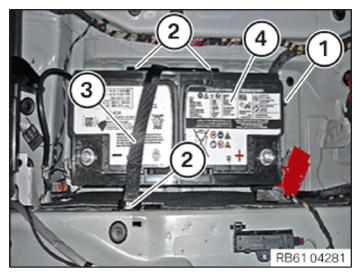

• Install system battery (4).
• Position battery bracket (3) and tighten screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Battery carrier to body
  Screw	tightening torque  10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the vent hose (1).

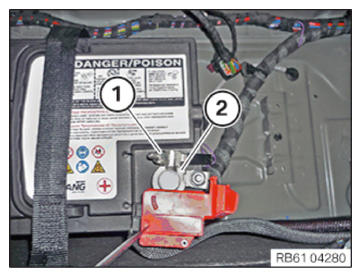

• Join positive battery terminal (2) to the battery pole.
• Tighten obliquely screwed nut (1) to the positive battery terminal (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Negative battery terminal
  Nut	tightening torque  5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

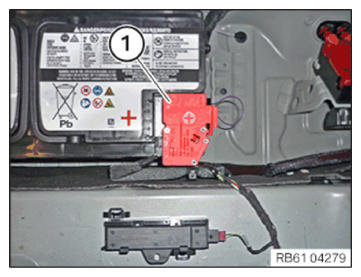

• Close the positive terminal cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CHECKING THE VENT HOLES OF THE BATTERY .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to REGISTER BATTERY CHANGE .
