Removing the convertible top fabric

Precondition

Battery charger connected.

Preliminary work

Refer to REMOVING THE SEAL FOR THE WINDSHIELD PANEL .
Refer to REMOVING THE SEAL FOR THE CONVERTIBLE TOP BRACE .

CAUTION: Folding up of convertible top through loss of pressure in hydraulic cylinders.
Injury hazard! Injury hazard by trapping!

When carrying out all repair work, secure soft top and soft top compartment lid with a suitable support tool against collapsing. Ensure soft top is supported in the middle.

Courtesy of BMW OF NORTH AMERICA, INC.

Move the convertible top (1) in a half opened position.
If necessary, secure the convertible top (1) from collapsing with the support 2 452 010 .
Detach adhesive tape (1) from the left and right of convertible top bow (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the convertible top fabric (1) from the convertible top bow and fold it upwards in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.
Release adhesive tape (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove retaining clip (1).
Detach tension cable (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Fold back convertible top fabric (1) further.

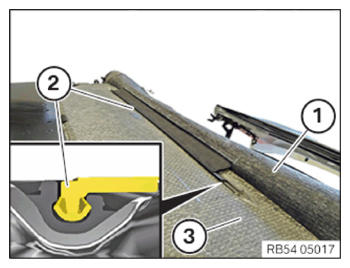

Guide out edge stripping (2) from convertible top bow (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Release wiring harness (1) from hook and loop fasteners (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Fold back convertible top fabric (1).

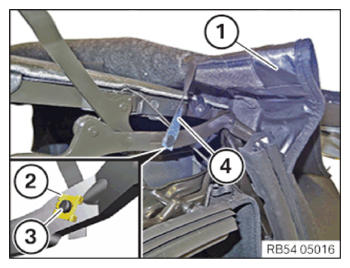

Release the retaining clip (2).
Guide out bolt (3).
Remove retaining strap (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Fold back convertible top fabric (1) further.

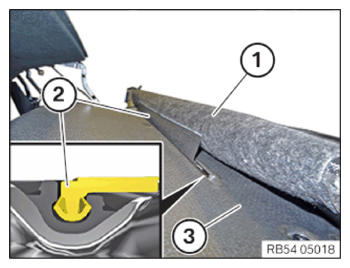

Guide out edge stripping (2) from convertible top bow (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed out the convertible top fabric (1) on the convertible top bow (2) and fold it upwards in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.
Detach the convertible top fabric (1) at the retaining tabs (2) in arrow direction and feed it out.

Courtesy of BMW OF NORTH AMERICA, INC.
Guide out retaining strap (1) from convertible top fabric (2).

Courtesy of BMW OF NORTH AMERICA, INC.

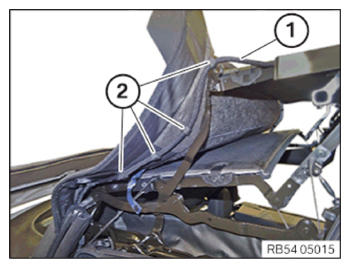

Disconnect plug connection (1).
Guide out wiring harness (2) from retaining tabs (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Release blind rivet (1).
Guide out retaining straps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

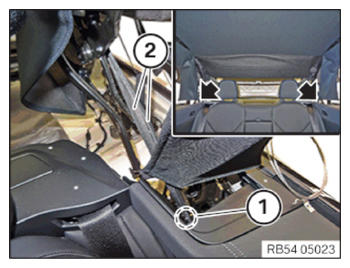

Mark the position of screws (1) on the left and right of the convertible top linkage.
Guide out and remove convertible top fabric (2) with convertible top bow (3) with the help of a support person.

Courtesy of BMW OF NORTH AMERICA, INC.

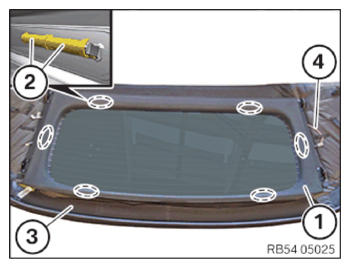

Release convertible top bow (1) from clamps (2) and detach it from convertible top fabric (3).
Disconnect and guide out cable (4).

Courtesy of BMW OF NORTH AMERICA, INC.
