Installing the storage net

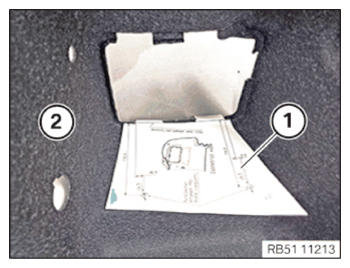

- Measure the reference dimension on the template (1) and cut it out as shown.
- Place the template (1) as shown on the luggage compartment wheel arch trim panel (2) and fasten it with adhesive tape.
- Drill holes all the way through at the marks using the Ø 6.5 mm drill bit from the special tools 5 A63 022 .
- Remove the template (1).

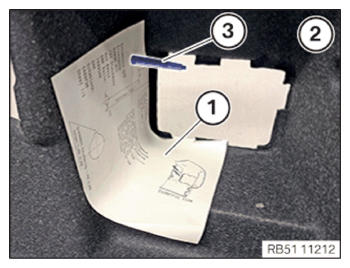

- Measure the reference dimension on the template (1) and cut it out as shown.
- Fix the template (1) as shown with a standard pencil (3) on the existing bore.
- Drill through the luggage compartment wheel arch trim panel (2) on the mark with the drill ø 10 mm from the special tool 5 A63 022 .
- Remove the template (1).

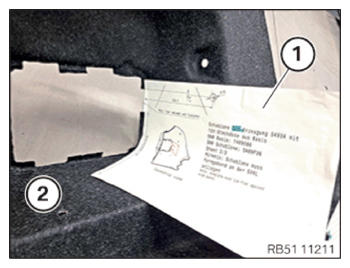

- Measure the reference dimension on the template (1) and cut it out as shown.
- Place the template (1) as shown on the luggage compartment wheel arch trim panel (2) and fasten it with adhesive tape.
- Drill holes all the way through at the marks using the ø 10 mm drill bit from the special tools 5 A63 022 .
- Remove the template (1).NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

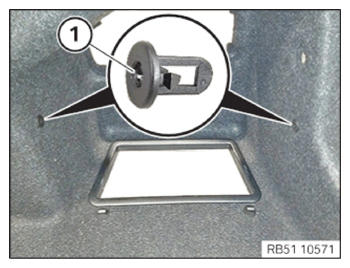

- Insert the holder (1) into the bores and lock in place correctly.NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

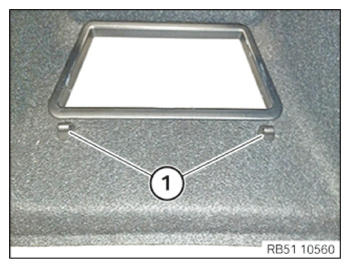

- Screw in the holder (1) in the bores 0 6.5 mm.NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

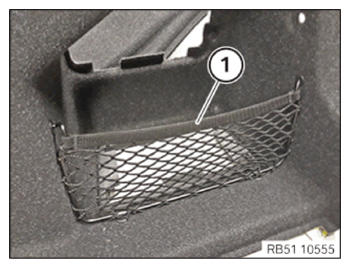

- Insert the storage net (1) at the top as shown and snap it in correctly on the holders below.
Follow-up work
- Refer to INSTALLING THE 12 V SOCKET IN THE LUGGAGE COMPARTMENT .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
