Installing the 12 V socket in the luggage compartment

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

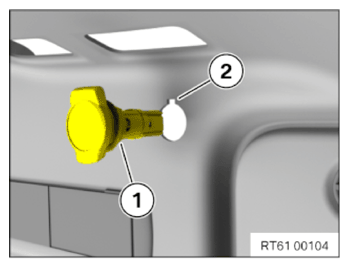

Install 12 V socket (1) in the luggage compartment wheel arch trim panel.
Pay attention to the guide (2) in the luggage compartment wheel arch trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.

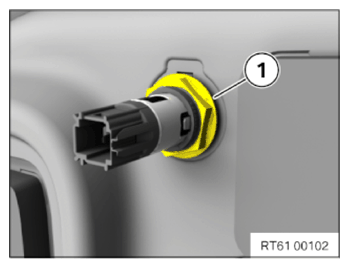

Tighten the 12 V power socket on the retaining ring (1).

G15340402

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
Refer to INSTALLING LOADING EDGE TRIM .
Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
