Remove thrust field
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist
- For additional information see: 00... Raise the vehicle using a VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible
Driving without thrust field is not permissible
Preliminary work
- Refer to REMOVING THE FRONT SPOILER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE LEFT AND RIGHT FRONT UNDERSHIELD .
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible
Driving without thrust field is not permissible
NOTE:
Perform the steps on the right and left side

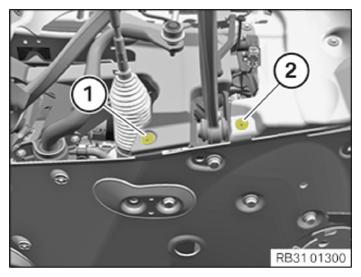

- Release screws (1) and (2)
Releasing the left and right thrust field from the door sill
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment
Different variants may be installed depending on the vehicle equipment
NOTE:
Perform the steps on the right and left side

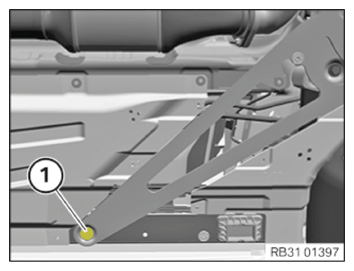

- Version A:
Loosen screw (1)

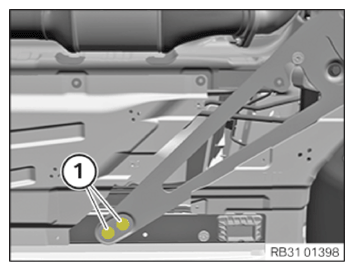

- Version B:
Loosen screws (1)
NOTE:
TECHNICAL INFORMATION
Secure component against falling
Secure component against falling

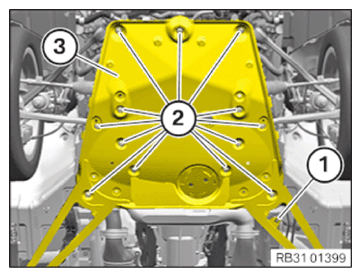

- Loosen screw (1)
- Loosen screws (2)
- Remove the thrust field (3)
