(Removing the left and right front undershield)
(Removing the left and right front undershield)
NOTE:
Perform the steps on the right and left side

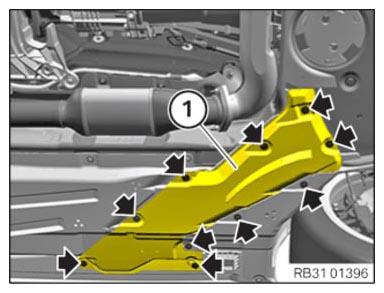

Removing undershield at the front
Remove screws (arrows)
Feed out the front undershield (1) and remove it
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
