Replacing the bearing journals for the timing chain

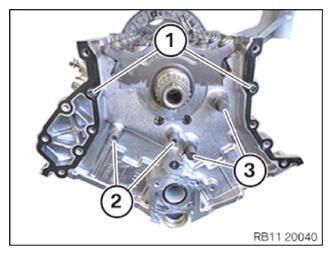

- Check the spacer sleeves (1) for damage and replace if necessary.
- Replace the bearing journal (2) of cylinders 7 to 12.
Parts: Bearing journal
TIGHTENING TORQUE SPECIFICATIONSGuide rail to cylinder head 1 to 6 M8x38 Tightening torque 22 Nm - Replace the bearing journal (3) of cylinders 1 to 6.
Parts: Bearing journal
TIGHTENING TORQUE SPECIFICATIONSTensioning rail bearing screw and guide rail, cylinder 1 to 6, to crankcase M10x1.25
Insert the bolt dry.Tightening torque 46 Nm
