Remove Vertical Strut
WARNING:
High-voltage system
.
The high-voltage system works with dangerous electrical voltage and high currents flow. Mortal hazard through electric shock!
The high-voltage system works with dangerous electrical voltage and high currents flow. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
61 25... Notes on repair of high-voltage battery unit. Refer to 41 11 650 REMOVING AND INSTALLING/REPLACING VERTICAL STRUT (SUPPORT FOR BUMPER COVER REMOVED) .
NOTE:
TECHNICAL INFORMATION
For additional information see: 41 00... Contents of Body, General
For additional information see: 41 00... Contents of Body, General
NOTE:
TECHNICAL INFORMATION
Observe the procedure for repair stage 1.
For additional information see: 41 00... Repair method for repair stage 1
Observe the procedure for repair stage 1.
For additional information see: 41 00... Repair method for repair stage 1
Preliminary work
- Refer to DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM .
- Refer to CHECK THAT NO VOLTAGE IS APPLIED .
- Refer to REMOVE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVE SERVICE CAP IN TRUNK .
- Refer to REMOVE UNDERBODY PROTECTION .
- Refer to REMOVE WHEEL ARCH COVER .
- Refer to REMOVE COMPLETE EXHAUST SYSTEM .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVE ENGINE COMPARTMENT FAN .

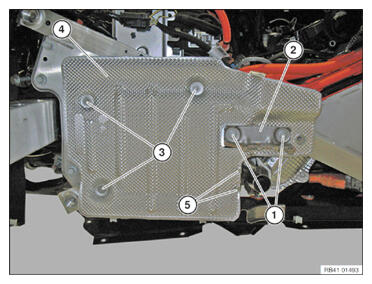

- Unscrew the bolts (1) and remove the exhaust bracket (2).
- Loosen screws (3).
- Lever the heat shield (4) out of the clamps (5) and remove it.

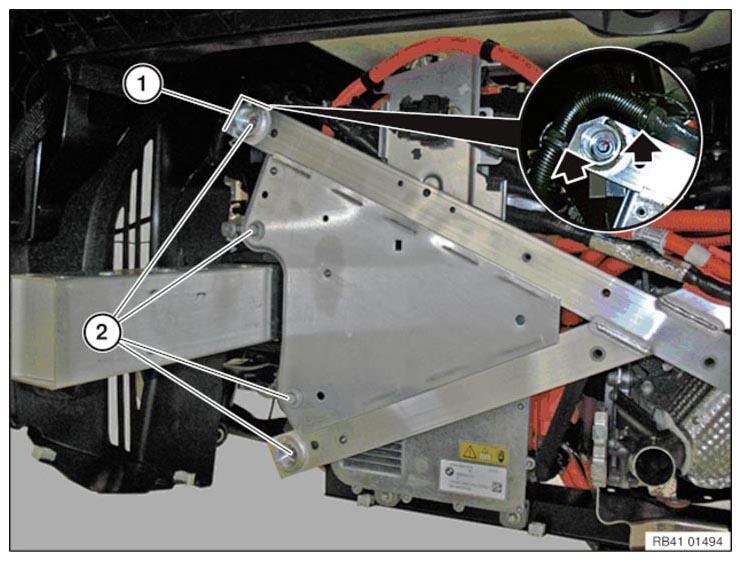

- Unclip the cable in area (1).
- Loosen screws (2).
- Turn the connector housing (1) by 45° and remove it.

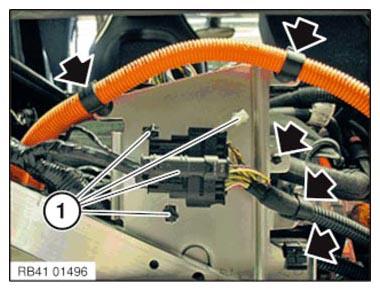

- Unclip cables at the marked points (arrows).

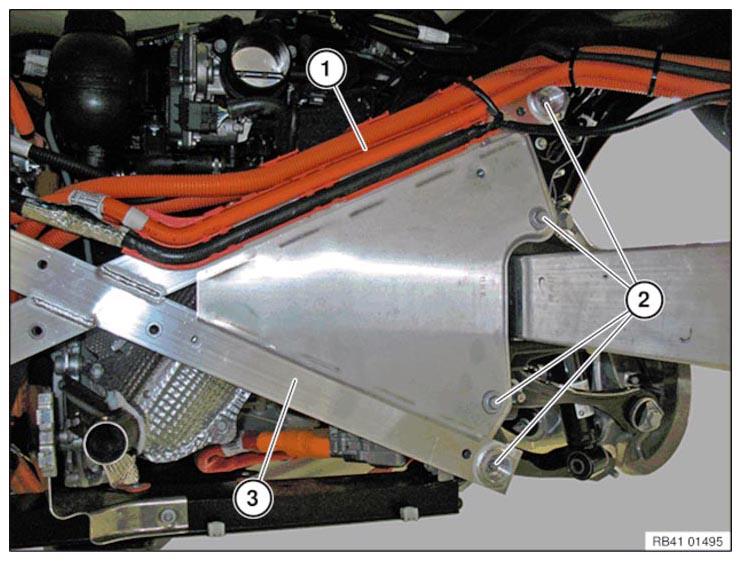

- Unclip 4 high-voltage cables (1).
- Loosen screws (2).
- Remove the vertical strut (3).
