Remove engine compartment fan

WARNING: High-voltage system .
The high-voltage system works with dangerous electrical voltage and high currents flow. Mortal hazard through electric shock!

All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
For additional information see:
61 00... SAFETY INSTRUCTIONS ON HANDLING HYBRID CARS .
For additional information see:
61 25... NOTES ON REPAIR OF HIGH-VOLTAGE BATTERY UNIT .

Preliminary work

Refer to DE-ENERGIZING THE HIGH-VOLTAGE SYSTEM .
Refer to CHECKING THAT NO VOLTAGE IS APPLIED .
Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to REMOVING SERVICE CAP IN TRUNK .
Refer to REMOVING WHEEL ARCH COVER .

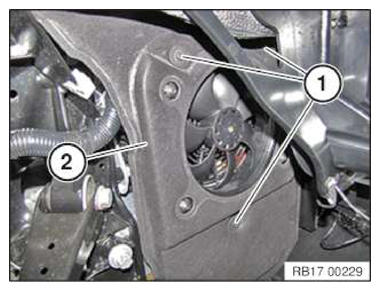

Loosen screws (1).
Remove the sound insulation (2).

Courtesy of BMW OF NORTH AMERICA, INC.

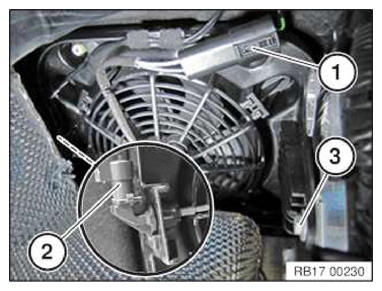

Unlock and disconnect connector (1) for the engine compartment fan.
Unlock and disconnect connector (2) on temperature sensor.
Unclip cable from fan cowl.
Loosen screw (3).

Courtesy of BMW OF NORTH AMERICA, INC.

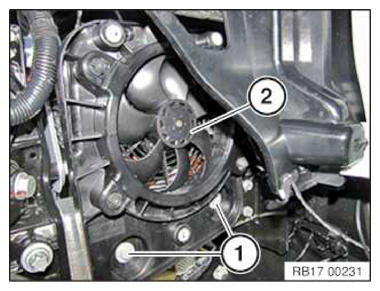

Loosen screws (1).
Remove engine compartment fan (2).

Courtesy of BMW OF NORTH AMERICA, INC.
