51 45 310 Remove and install (replace) cover for dashboard, center
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).
Preliminary work needed:
- Refer to REMOVING CENTRAL INFORMATION DISPLAY (CID) .

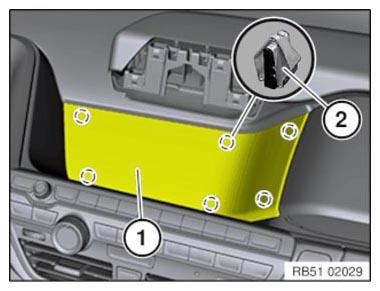

Unclip trim (1) from clamps (2) and remove.
Installation note:
Replace faulty clamps (2).
