65 50 057 Removing and installing/replacing Central Information Display (CD)

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

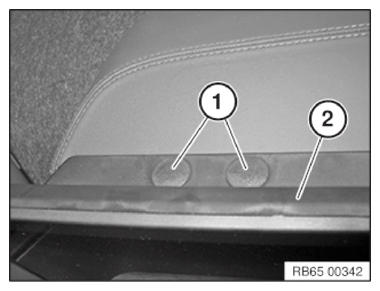

Lift off covers (1).

Release screws underneath.

Remove CID (2) towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

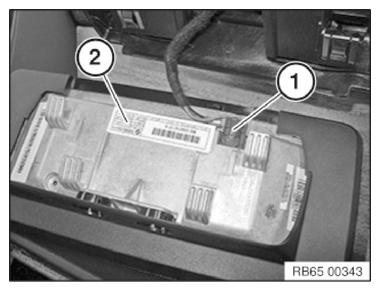

Unfasten plug connection (1) and disconnect.

Remove CID (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

NOTE: In the case of replacement of 6.5" central information display in vehicles with production date up to 07/2013 Entry Head Unit must be updated.
