Remove brake booster (vehicles with manual transmission)

Preliminary work

• Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
• Refer to REMOVING THE EXPANSION TANK (VEHICLES WITH MANUAL TRANSMISSION) .
• Refer to REMOVING THE TANDEM BRAKE MASTER CYLINDER (VEHICLES WITH MANUAL TRANSMISSION) .
• Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .

Courtesy of BMW OF NORTH AMERICA, INC.

• Remove air duct (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Remove check valve (1) from brake unit in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

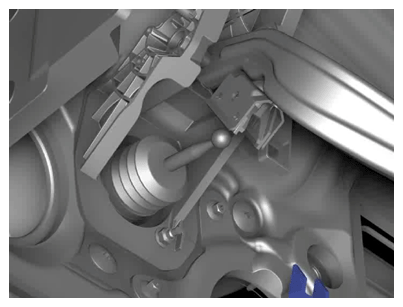

• Retract release tool 2 409 646  between brake pedal and brake booster.
• Apply support (1) of the release tool 2 409 646  on the bearing bracket. If necessary, position the support by rotating the screw on the release tool.

Courtesy of BMW OF NORTH AMERICA, INC.

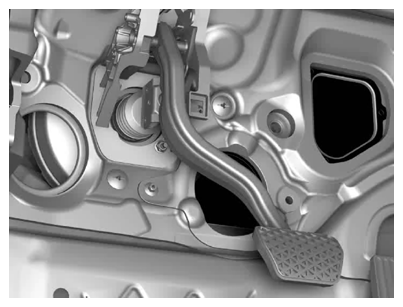

• Press release tool 2 409 646  in the direction of the arrow and lever the brake pedal off the braking unit.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Unscrew the brake booster (1) from the firewall.
