Removing the expansion tank (vehicles with manual transmission)

Preliminary work

• Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .

Precondition

Brake fluid has been drawn off.

Courtesy of BMW OF NORTH AMERICA, INC.

• Disconnect plug connection (1).
• Detach the cable from the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

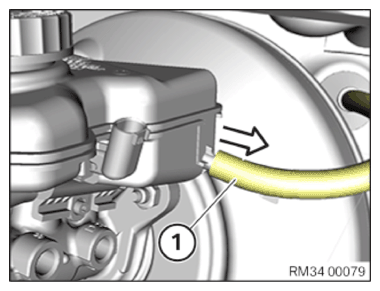

• Detach the feed line (1) for the clutch hydraulic system in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1).
• Remove expansion tank upwards.
