Installing front brake caliper (High brake)

Courtesy of BMW OF NORTH AMERICA, INC.

• Install the brake caliper in the arrow direction.
• Replace screws (1).

  Parts  : Screws

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Brake caliper/brake anchor plate at front swivel bearing
  M12 Replace screw.	Tightening torque	130 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

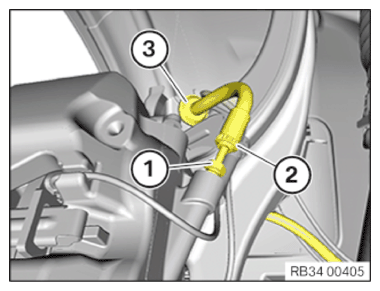

• Fit and tighten brake hose (1) on brake caliper.

  If necessary, grip at knurling (2).

  TIGHTENING TORQUE SPECIFICATION



  Brake hose to brake caliper, front
  tightening torque		17 Nm

• Make sure the brake hose is not twisted and resting on components attached to the body.
• If necessary, hook the brake hose in the holder (3).

Follow-up work

• Refer to GREASE BRAKE PADS, BRAKE ANCHOR PLATE AND BRAKE CALIPER WITH BRAKE PAD PASTE (BRAKE HIGH) .
• Refer to INSTALLING FRONT PADS (HIGH BRAKE) .
• Refer to ADHESION OF BRAKE PADS TO BRAKE PISTONS .
• Refer to INSTALLING THE FRONT BRAKE PAD WEAR SENSOR (HIGH BRAKE) .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
• Refer to CONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
• Refer to FLUSH AND BLEEDING THE FRONT AXLE BRAKE CIRCUIT (BRAKE HIGH) .
• Refer to DISCONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to COMMISSIONING OR BEDDING IN (BRAKE) OF NEW BRAKE PADS AND DISCS (HIGH BRAKE) .
