(Connect the bleeder unit for the brake fluid)
- To guarantee a correct vent of the brake system, the following procedure must be observed!

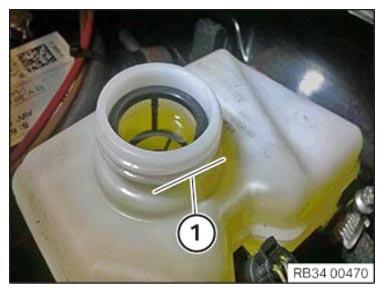

- Top up the brake fluid in the expansion tank to the lower edge of the thread (1) with new brake fluid.
- Vent the hose of the bleeder unit before connecting.
NOTE:
TECHNICAL INFORMATION
Use only BMW-approved brake fluids; see "Fluid Capacities" tab for the selected vehicle.
Use only BMW-approved brake fluids; see "Fluid Capacities" tab for the selected vehicle.
NOTE:
RISK OF DAMAGE
Paint damage.
Mechanical or chemical action may lead to paint damage.
Paint damage.
Mechanical or chemical action may lead to paint damage.
- Cover up working area with specified covering material only.

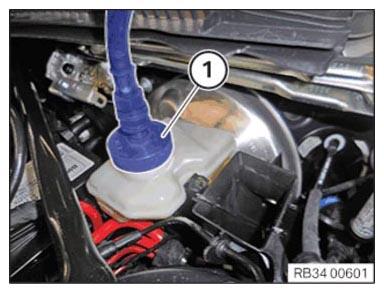

- Connect the bleeder unit (1) to the brake fluid reservoir and turn on.
Observe the operating instructions of the corresponding equipment manufacturer.
- Do not exceed the tire pressure of 2 bar.
