Installing the right Soft-close motor

• Install the soft-close motor, together with the Bowden cable (1), in the vehicle.
• Attach the cable linkage (2) to the trunk lid lock.
• Clip counter support (1) into trunk lid lock.

  Courtesy of VOLVO CARS CORPORATION

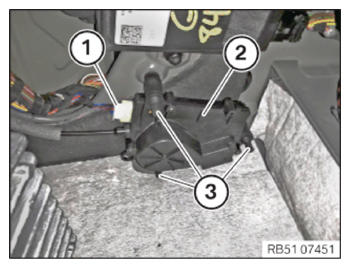

• Clip the soft-close automatic (2) into the holders (3).
• Connect plug (1).

  Courtesy of VOLVO CARS CORPORATION

Follow-up work

• Refer to INSTALLING THE RIGHT STORAGE COMPARTMENT .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT TRIM PANEL ON THE RIGHT SIDE PANEL .
• Refer to INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
• Refer to INSTALLING THE RIGHT REAR SIDE TRIM PANEL UPPER SECTION .
• Refer to INSTALLING THE RIGHT D-PILLAR TRIM PANEL .
• Refer to INSTALLING THE RIGHT C-PILLAR TRIM PANEL .
