Installing the right rear side trim panel upper section
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Installing the side trim panel upper section at rear left

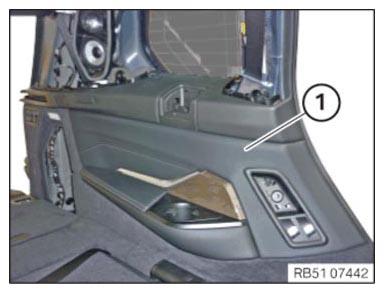

- Feed in the side trim panel upper section (1) on the lower section of side trim panel and correctly position.
- Tighten down screws (2).
Tightening torques
| Luggage compartment mount on body | |
|---|---|
| M6x20 screw | tightening torque 8.0 Nm |

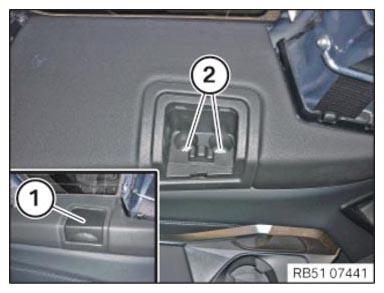

- Mount the cover (1).
- Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATIONS
| Switch for easy entry, rear | ||
| M6X19 screw | tightening torque | 4.0 Nm |

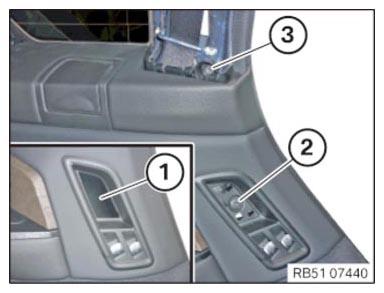

- Mount the cover (1).
- Tighten down screw (3).
TIGHTENING TORQUE SPECIFICATIONS
| Side trim panel to body | ||
| Screw M6x19 | tightening torque | 4.0 Nm |

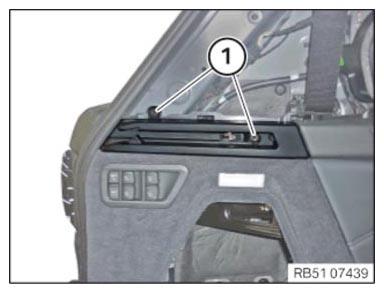

- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Side trim panel to body | ||
| Screw M6x19 | tightening torque | 4.0 Nm |
