Installing the front door power window
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

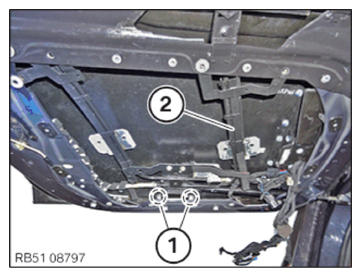

- Feed in and position power window (2).
- Before the completing the screw connection, add a drop of screw locking agent on the screw thread of the mounting bolt.
ADHESIVE SPECIFICATIONS
| Screw lock Loctite Stick 243, medium strength | 10 ml, Bottle | 83192210339 |
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Power electric windows to door | ||
|---|---|---|
| M8 screw | tightening torque | 20 Nm |

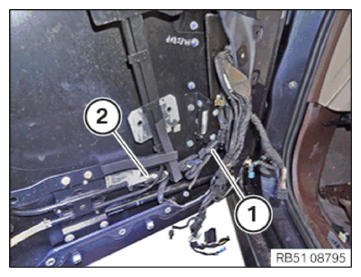

- Secure the Bowden cable sleeve (1) with the new cable straps.

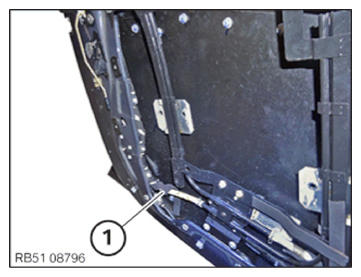

- Plug in connector (1) and attach to wiring harness.
- Secure the Bowden cable sleeve (2) with the new cable straps.
Follow-up work
- Refer to INSTALLING FRONT DOOR WINDOW GLASS .
- Refer to INSTALLING THE PROTECTIVE PLATE ON THE FRONT DOOR .
- Refer to INSTALLING THE WINDOW CHANNEL STRIP ON THE FRONT DOOR ON THE OUTSIDE .
- Refer to MOUNTING THE OUTSIDE REARVIEW MIRROR ONTO THE FRONT DOOR .
- Refer to INSTALLING FRONT DOOR TRIM PANEL .
- Refer to MOUNTING MIRROR TRIANGLE COVER .
