install the vibration absorber on the trunk lid

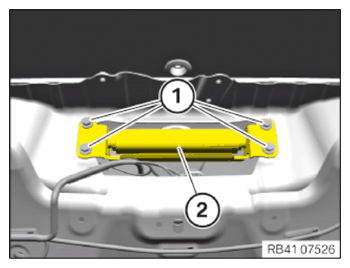

• Position the vibration absorber (2) on the tailgate.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Vibration absorber to tailgate
  M6 screw
  	Tightening torque	8 Nm

  Courtesy of VOLVO CARS CORPORATION

Follow-up work

• Refer to INSTALLING REAR WINDOW WIPER MOTOR .
• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to INSTALLING THE POWER TAILGATE SWITCH .
• Refer to INSTALLING THE TRIM FOR THE LEFT AND RIGHT SIDE REAR WINDOW FRAME .
• Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
• Refer to INSTALLING WIPER ARM OF THE REAR WIPER .
