Installing wiper arm of the rear wiper

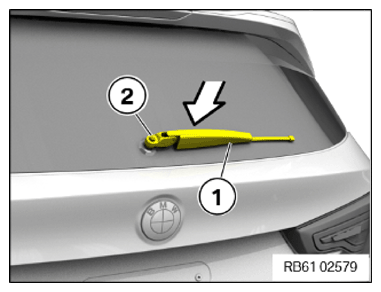

- Mount the wiper arm (1) of the rear wiper on the wiper pivot in arrow direction and align parallel to the lower rear window edge.
- Tighten nut (2) on the wiper arm (1) of the rear wiper.TIGHTENING TORQUE SPECIFICATIONS

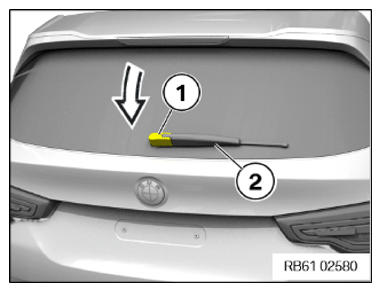

Wiper arm for rear wiper M6 hexagon nut Tightening torque 8 Nm - Close protective cap (1) on the wiper arm (2) of the rear wiper.
